SKX-2000A 心電信號模擬儀中文介紹 SKX-2000A ECG Simulator English Introduction
功能特點： Functional Features:
★ 10個萬用連接頭，可以連接任意心電類產品。 ★ Ten universal connectors, capable of connecting any electrocardiogram-related products.
★ 12導聯同步心電信號輸出，輸出不同的12導心電波形。 ★ 12-lead synchronous electrocardiogram signal output, providing different 12-lead electrocardiogram waveforms.
★ 內置高性能CPU，可以模擬輸出標準心率 ★ It is equipped with a high-performance CPU, which can simulate and output the standard electrocardiogram
為60bpm的心電波形。 waveform with a heart rate of 60 beats per minute.
★ 內置大容量鋰電池，外置專用充電器。 ★ Built-in large-capacity lithium battery, with a dedicated external charger.
★ 系統具有自動休眠功能，電池過沖、過放保護功能。 ★ The system has the functions of automatic sleep mode and protection against battery overcharging and
overdischarging.
使用說明： Functional Features:
1）本充電器通過各種認證，輸出電壓4.2V，標準電流0.5A， 1) This charger has passed various certifications. It outputs a voltage of 4.2V, with a standard current of 0.5A and a
極限電流0.6A，帶有完善的過流、短路保護功能，充滿后 maximum current of 0.6A. It is equipped with complete overcurrent and short-circuit protection functions. After being
無需立即切斷電源，不會過充。用料扎實，摒棄了低檔電 fully charged, there is no need to immediately cut off the power supply, and it will not overcharge. The materials used
源用的13001（0.5A）三級管，直接采用了13003（1.5A） are solid, and it has abandoned the 13001 (0.5A) transistor used in low-end power supplies, directly adopting the
三極管，使得功率裕量非常足，即使在極端條件下也不會 13003 (1.5A) transistor, which ensuresa very sufficient power margin. Even under extreme conditions,
出現故障。 it will not malfunction.
★ 輸出電壓：4.2V ★ Output voltage: 4.2V
★ 輸出電流：500mA（3.5圓孔插頭） ★ Output current: 500mA (3.5 round-hole plug)
★ 輸入電壓：110V-240V ★ Input voltage: 110V - 240V
2）輸出2根線，輸出亮綠燈為正常待機狀態，充電時為紅燈， 2) Two output wires are provided. The green light being on indicates a normal standby state, while the red light is on
當充電池電壓達到4.16V左右紅燈轉為綠燈，此時充電器 during charging. When the battery charging voltage reaches approximately 4.16V, the red light changes to green.
并非完全停止充電，而是以小電流涓流繼續充電，最高 At this point, the charger is not completely stopping the charging process; instead, it continues charging with a
截至電壓為4.21V。該充電器帶全套保護，所以怎么接線 small current in a trickle mode, with the maximum cutoff voltage being 4.21V. This charger comes with a complete
短路都不會損壞充電器的。 set of protection, so even if there is a short circuit in the wiring, the charger will not be damaged.
3）指示燈狀態表示： 3) Indicator light status indication:
★ 綠燈為待機（充電時為4.16V涓流狀態） ★ The green light indicates standby (it is in a 4.16V trickle charge state when charging).
★ 紅燈為充電！ ★ Red light means charging!
★ 閃綠燈為過壓4.21V ★ The flashing green light indicates overvoltage of 4.21V.
★ 閃紅燈為電池故障或短路 ★ The flashing red light indicates a battery failure or short circuit.
4）充電器帶短路，過流過壓，正負極反接短路保護。 4) The charger has short circuit protection, overcurrent and overvoltage protection, as well as protection against reverse
connection of positive and negative poles.
注意： Functional Features:
★ 本模擬器上電后自動產生正常心電波形，心率 ★ After powering on this simulator, it automatically generates a normal electrocardiogram waveform with a heart rate
為60bpm。 of 60 beats per minute.
★ 為防止用戶在使用過程中忘記關閉電源，系統設計為當24個小 ★ To prevent users from forgetting to turn off the power during use, the system is designed such that after 24 hours,
時 后，CPU將進入待機狀態，以便節電，再次開機將正常工作。 the CPU will enter a standby mode to save energy. When the system is restarted, it will function normally.

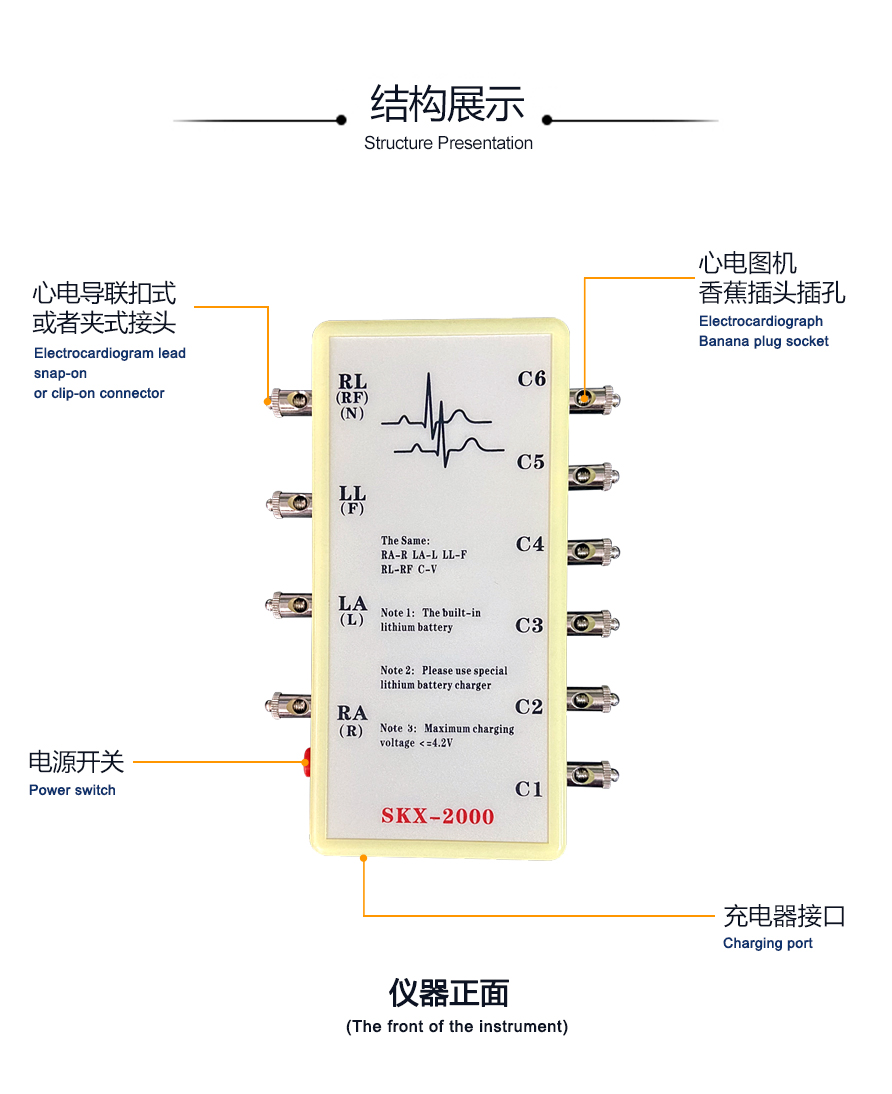

★ 心電圖機接法： ★ Electrocardiograph connection method:
RA-右手，LA-左手，LL-左腳，RL-右腳，C1-C6胸導 RA - Right hand, LA - Left hand, LL - Left foot, RL - Right foot, C1-C6 chest leads
★ 監護儀接法：RA-右手（白色），LA-左手（黑色）， ★ Monitoring device connection method: RA - Right hand (white), LA - Left hand (black),
LL-左腳（紅色），RL-右腳（綠色），C1-C6胸導（棕色） LL - Left foot (red), RL - Right foot (green), C1-C6 chest leads (brown)
★ 三導聯接法： ★ Three lead connection method:
RA-右手（白色），LA-左手（黑色），LL-左腳（紅色） RA - Right hand (white), LA - Left hand (black), LL - Left foot (red)
★ 歐標對應接法： ★ European standard corresponding connection method:
L-LA R-RA RF(N)-RL F-LL C-V L-LA R-RA RF(N)-RL F-LL C-V
